Home /Products/Curve Roller Conveyor/Oil Resistant Curved Roller Conveyor , Taper Roller Conveyor

Oil Resistant Curved Roller Conveyor , Taper Roller Conveyor

5 Sets
MOQ
Oil Resistant Curved Roller Conveyor , Taper Roller Conveyor
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Type: Roller
Material: STEEL
Material Feature: Oil Resistant
Structure: Roller Conveyor
Load Capacity: Max100KG
Place Of Origin: Jiangsu, China
Brand Name: JS
Model Number: R-TCN
Dimension(L*W*H): Customized Size
After-sales Service Provided: Overseas Service Center Available
Certification: ISO9001
Frame: Angle Steel
Roller Widh: 300~800MM
Shaft Diameter: 12MM
Roller Pitch: 75 100 150MM
Warranty: 1 Year
Product Name: Curved Roller Conveyor
Basic Infomation
Place of Origin: Jiangsu, China
Brand Name: JS
Certification: ISO9001
Model Number: R-TCN
Payment & Shipping Terms
Packaging Details: wood case,industrial cage ect
Supply Ability: 10000 Set/Sets per Month
Product Description

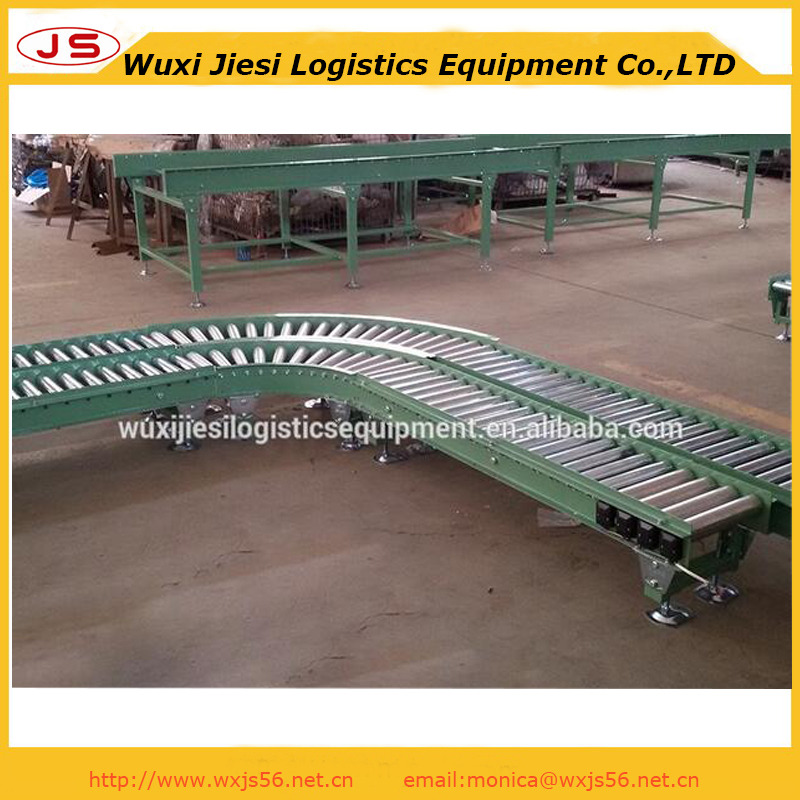

R-TCN STEEL curve roller conveyor,taper roller conveyor

>>Technical parameters:

bend angle:90 degree

bend radius:900mm

frame: 90mm U-STEEL

width: 300mm~800mm

Load capacity: max about 100kg

>>Size:

roller width W (mm)300400500600700700800
small radius A(mm)roller outer diameter42.742.742.742.742.74343
shell thickness3.23.23.13.13.23.23.1
big radius B(mm)roller outer diameter56.861.366.471.376.276.280.0
shell thickness2.12.12.12.12.02.02.0

SPE.bend radius
R		OD(φ)×wall T(t)
production		shaft OD(φ)×shell thickness(t)roller width
W
R-TCN90012x1.0pipe
semi-circle		[ 90×30×3.2
100		300~800
100 increasing

roller pitch P
(roller QUT)		roller
angle
θ		roller strength
(kg)		conveyor weight
(kg)
75(23)/100(18)
150(12)		90°100
(400W)		55.7
(400W / 75P)

>>Pictures:

If you are interested in these products,please do not hesitate to contact me asap,I will give you the detailed response promptly.
