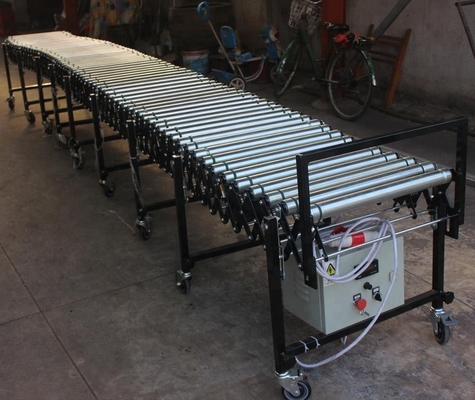

Flexible motorized roller conveyor is an extendable powered automatic roller conveyor with controllable conveying speed and adjustable supporting leg height,Having enough power supply by one mini motor per section,it is well qualified to intensively transport goods especially with flat bottom in the warehouse/storehouse,workshop,factory,harbor,dock,etc.In addition,it can be applied to such situations as production-packing line,temporary conveying line and goods distribution line.It satifies the easy,quick and efficient goods delivery.
1.Φ50 carbon steel rollers are driven by SEIGLING brand PU material O-shape belt from germany
2.Between two roller,through transition wheel transmission
3.Every section is equipped with one independent CE verified motor:60w,STS brand from taiwan
4.Thickness 3mm Curved joint plate with better figure and load
5.The leg can be adjusted height by screw,the universal casters with brake.
6.At the end of machine,where have fence in case of goods fall down.
7.Every set machine controlled by one independent electrical box with emergency stop.voltage is optional(standard:220V AV 1-PH)
8.Two set machine can respective have one electrical box or two set machine have one electrical box,between connect by air plug
9.The machine width can be choosen,600mm,800mm,or1000mm
10.We also provide rubber roller conveyor
11.Flexible motorized roller conveyor application
12.Transport package
13.Factory view
