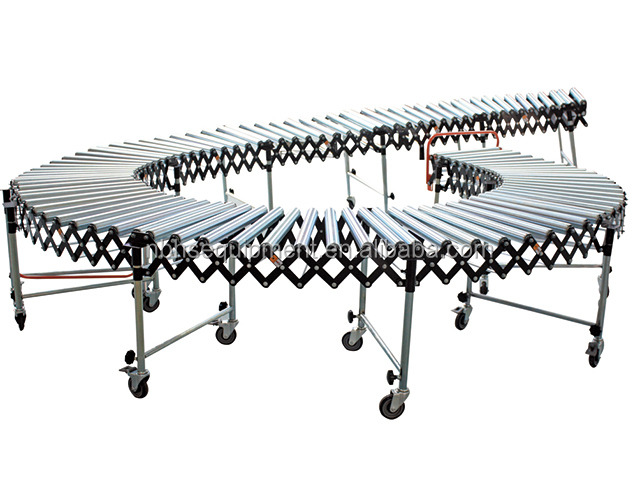

Flexible roller conveyor
Flexible gravity roller conveyor is one of the most common conveyors applied in conveying flat-bottomed items like cases, boxes and pallets. small, soft, or irrgular items are supposed to put on trays or other flat containers. this kind of conveyor is characterized with large and efficient distribution, convenient connection to other lines and easy maintance.
Optional frame material: carbon steel, stainless steel, aluminum ect.
Optional roller material: zinc-plated steel, chrome-plated steel, rubber coated steel, stainless stell, aluminum,pvc ect.
This item main application is to be used as production-line, transport line, loading and offloading container/truck/van, that work by manual or gravity.
| Model | Length of first/last section | Length of middle section | Effective width | Adjustable height | Load capacity | Roller/section | Dead weight |
| DG |
560~1250mm 1.84~4.10ft |
460~1100mm 1.51~3.61ft |
600mm 24in |
700~1000mm 2.30~3.28ft |
40kgs 88.19lbs |
9pcs |
42kgs 92.59lbs |
| Item no | Material | Expanded range | Adjustable height |
Leg sets per unit |
How many roler per axle |
How much spacing between axles | Diameter of roller | Casters size | Lockable end caster ( Y/N) |
| DG-4 | steel/plastic |
2040~4700mm 6.69~15.42ft |
700~1000mm 2.30~3.28ft |
5 | 1 or 2pcs |
55.12~125mm 2.17~4.92ft |
38mm/50mm 1.5in/1.97in |
100*27.94*157.99mm 3.94*1.10*6.22in |
Y |
| DG-5 | steel/plastic |
2500~5800mm 8.2~19.03ft |
700~1000mm 2.30~3.28ft |
6 | 1 or 2pcs |
55.12~125mm 2.17~4.92ft |
38mm/50mm 1.5in/1.97in |
100*27.94*157.99mm 3.94*1.10*6.22in |
Y |
| DG-6 | steel/plastic |
2960~6900mm 9.7~22.64ft |
700~1000mm 2.30~3.28ft |
7 | 1 or 2pcs |
55.12~125mm 2.17~4.92ft |
38mm/50mm 1.5in/1.97in |
100*27.94*157.99mm 3.94*1.10*6.22in |
Y |
| DG-7 | steel/plastic |
3420~8000mm 11.22~26.25ft |
700~1000mm 2.30~3.28ft |
8 | 1 or 2pcs |
55.12~125mm 2.17~4.92ft |
38mm/50mm 1.5in/1.97in |
100*27.94*157.99mm 3.94*1.10*6.22in |
Y |
| DG-8 | steel/plastic |
3880~9100mm 12.73~29.86ft |
700~1000mm 2.30~3.28ft |
9 | 1 or 2pcs |
55.12~125mm 2.17~4.92ft |
38mm/50mm 1.5in/1.97in |
100*27.94*157.99mm 3.94*1.10*6.22in |
Y |
