Fire Resistant Portable Telescopic Roller Bed Conveyor For Truck Unloading

1.0 Sets
MOQ
$4,000.00(1 - 4 Sets) $3,500.00(5 - 9 Sets) $3,000.00(>=10 Sets)
Price
Fire Resistant Portable Telescopic Roller Bed Conveyor For Truck Unloading
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Advertising Company, Food & Beverage Factory, Food & Beverage Shops, Food Shop, Garment Shops, Other, Retail
Showroom Location: None
Condition: New
Material: Carbon Steel
Material Feature: Fire Resistant
Structure: Roller Conveyor
Place Of Origin: Zhejiang, China
Brand Name: YiFan
Voltage: NO POWER
Power: Other
Dimension(L*W*H): L6900*W600*H700/1000 Mm
Warranty: 1 Year
Width Or Diameter: 600mm
Machinery Test Report: Not Available
Video Outgoing-inspection: Provided
Marketing Type: Hot Product 2020
Warranty Of Core Components: 1 Year
Core Components: Other
Weight (KG): 400 Kg
Standard Width: 600mm
Close Length: 4700mm
Open Length: 13500mm
Length In Vehicle: 10000mm
Vehicle Tailboard: 1250-1600mm
Load Height In Vehicle: 700/900mm
Discharge Height Outside Vehicle: 1500/1800mm
Rollers In Transfer Section: 25mm Galvanized Steel Rollers
Rollers In Inpact Section: 50mm Galvanized Steel Rollers
Rollers In Middle Section: 50mm Double PVC Rollers
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: YiFan
Payment & Shipping Terms
Packaging Details: pallet
Supply Ability: 200 Set/Sets per Month
Product Description
Product Overview

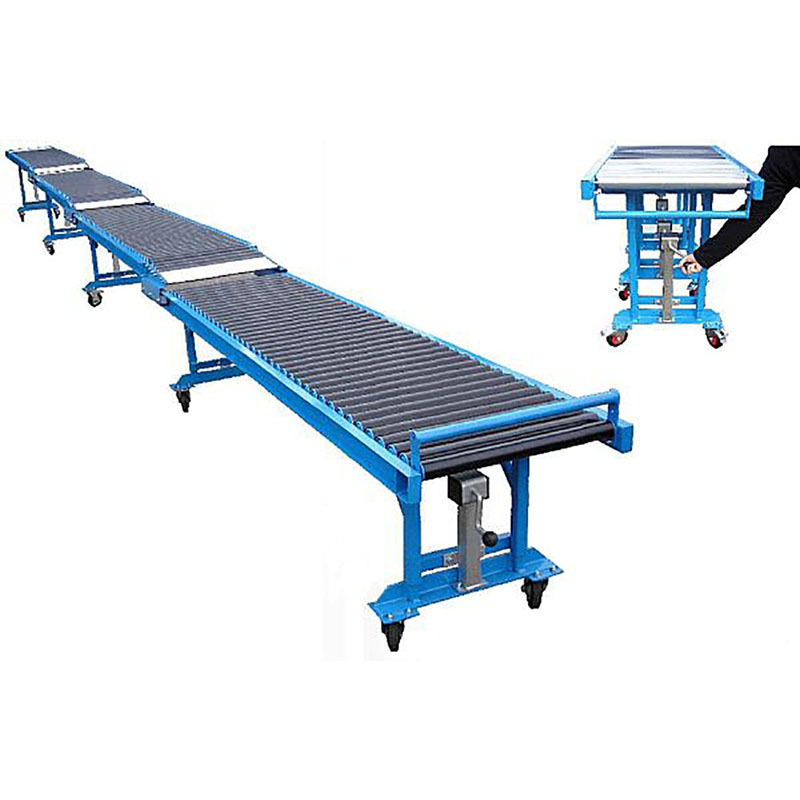

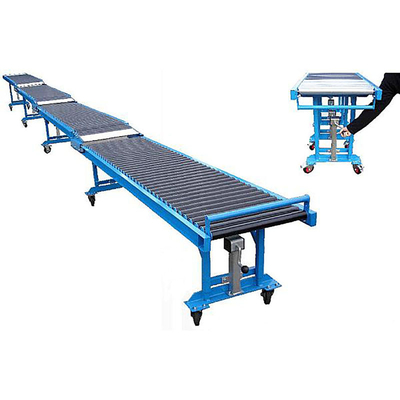

Robust Extendable Gravity Roller Conveyor for Unloading Container Vehicle of all size

Gravity feed telescopic roller conveyor is a simple arrangement of several sections of gravity roller tracks.It is the most
economic helpful solution for loading and unloading goods in warehouses.This gravity conveyor is a development of the highly successful telescopic mounted on a large robust box section chassis with an adjustable platform which suits most tailboard heights. Fully welded steel construction giving stability & strength. Low inertia 50mm dia PVC rollers set at 75mm centers allows transportation small & large parcels. Smooth transfer between decks is achieved by a series of 25mm dia steel rollers within a transfer slider section. Intended for off-loading only without the need of a loading dock, the telescopic can be used in conjunction with other conveyor from our extensive range to reach all areas of the warehouse.
Specification
Standard Width: 600mm Close Length: 4700mm Open Length: 13500mm Length in vehicle: 10000mm Vehcile Tailboard Height: 1250-1600mm Load Height in vehilce: 700/900mm Discharge height outside vehicle: 1500/1800mm
Left Elevation
Front Elevation
Right Elevation
Reference Drawing
Application
Packing and Shipping
Lay the conveyor roller surface one by one on the pallet.
Wrap with buble film and fixed well by bandages.
Lay the conveyor one by one on the pallet.
Wrap with buble film and fixed well by bandages.
Company Profile
FAQ

Please feel free to contact us at sales@yfconveyor.com if you have any other questions.

How long is the production time?
YIFAN: flexible conveyor takes 1-2 weeks; truck loading conveyor and telescopic belt conveyor takes 3-4 weeks

What is the MOQ?
YIFAN: 1 unit

Can your company provide OEM & ODM service
YIFAN: yes

Can you do customized conveyors?
YIFAN: yes

Do you offer installation service abroad?
YIFAN: yes

What is the payment terms?
YIFAN: T/T,LC,

What is the delivery port?
YIFAN: Ningbo/Shanghai

How many years have you been in this industry?
YIFAN: 10 years

What is the HS code?
YIFAN: 84283300,84283920,84283990

Is YIFAN a trading company or factory?
YIFAN: we are a trading company but have long-term cooperation factory, who only supply from us.

Which industry can your conveyors be applied to?
YIFAN: our conveyors are widely used in the logistics center, industrial production workshop, storage warehouse. Many of our clients hail from the e-commerce, express, food, beverage, garment, textile, furniture and home appliances industry. How many countries have you exported to?
YIFAN：: United States, India, Bangladesh, UAE, Kenya, Indonesia, Pakistan, Malaysia, Thailand, Sri Lanka, the Philippines, Saudi Arabia, Singapore, France, Canada, etc.
