Maxsen gravity flexible expandable plastic skate wheel roller conveyor telescopic conveyor

1.0 Sets
MOQ
Maxsen gravity flexible expandable plastic skate wheel roller conveyor telescopic conveyor
Features Gallery Product Description Request A Quote
Features
Specifications
Applicable Industries: Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Food Shop, Printing Shops, Construction Works , Food & Beverage Shops
Showroom Location: None
Condition: New
Material: Carbon Steel
Material Feature: Heat Resistant
Structure: Roller Conveyor
Place Of Origin: Shanghai,China
Brand Name: MAXSEN
Voltage: Local Power
Power: Customized
Dimension(L*W*H): Customized Size
Warranty: 1 Year
Width Or Diameter: Other
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 6 Months
Core Components: Motor, Other, Gearbox, Engine
Materials Of Belt: Fulai Wheel Roll
Product Name: Skate Wheel Telescoped Conveyor
Frame Material: Stainless Steel /Carbon Steel/Aluminium Profile
Motor: Made In China,SEW,ABB
Roller Material: Stainless Steel, PVC, Carbon Steel
Drive Type: Unpower Or Drived By Motor
Skate Wheel Material: ABS Or Nylon Or Steel
Load-bearing: 30KG/50KG/70KG, Custom
Keyword: Adjustable Conveyor
Certification: CE ISO9001, CUSTOMIZED
After Warranty Service: Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service
Local Service Location: None
After-sales Service Provided: Online Support
Basic Infomation
Place of Origin: Shanghai,China
Brand Name: MAXSEN
Certification: CE ISO9001, CUSTOMIZED
Payment & Shipping Terms
Packaging Details: Wooden or Carton
Supply Ability: 100 Set/Sets per Month
Product Description
Product Description
Specification

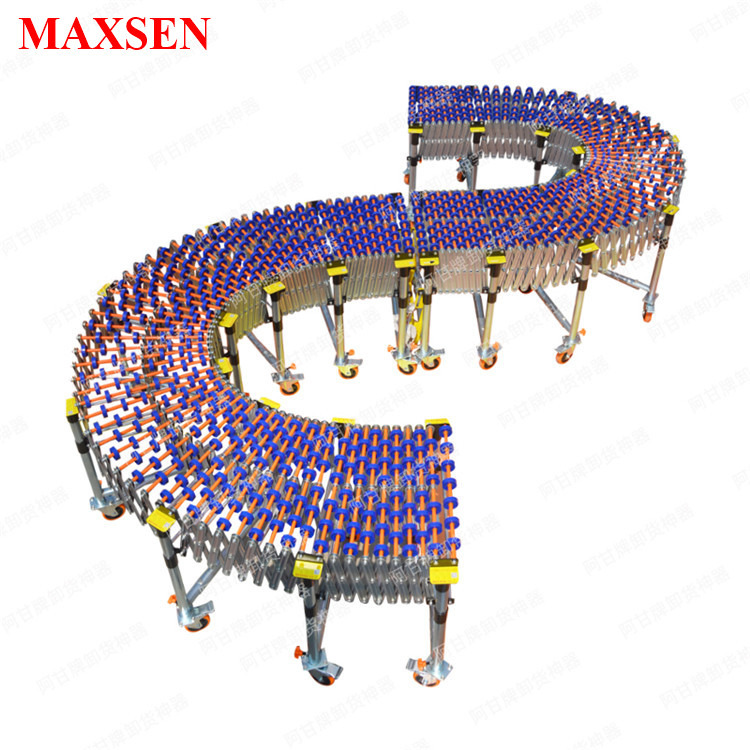

Gravity skate wheels telescopic conveyor for boxes unloading


Product features
A. This product uses ABS wheels, the product is light, beautiful in appearance, small in product space -- the expansion ratio is 1:5, for example, the total length of the product is 5 meters, shortened to 1 meter, which is convenient for customers to reduce the floor space without using.
B. Adjustable height, adjustable range of 450mm-2300mm, suitable for loading and unloading of various trucks, the product has a large bearing capacity, the maximum bearing can reach 25kg, which is basically used in most cases of box conveying.
C. The limit length of the product can be up to 40 meters, and it can turn 360 degrees, but it needs to reach 12 modules. The
product can be upshift to prevent the object from running off.
D. The product adopts gravity conveying, with less investment, quick effect, simple structure, easy installation and disassembly. The product adopts modular design, which is convenient for users to expand the product length and change the product length demand later. E. The product is solid and durable, with a normal service life of 4-5 years, low maintenance cost, less maintenance time, convenient movement and universal caster and brake device, which is convenient for use in various indoor and outdoor places.
Product application: suitable for small workshops, organic farms, restaurants, small logistics distribution, supermarkets, small food processing plants, warehouses and other places, suitable for conveying flat bottom of the box.




Conveyor Width (W)
500mm, 600mm, 800mm, 1000mm, and custom
Conveyor Length (L)
The total length can be customized
Conveyor Height (H)
450~2000mm (Custom)
Conveyor Feature
Telescopic arbitrarily, it can turn 360 °, height-adjustable
Skate Wheel Material
ABS, Nylong or steel
Conveyor Roller (if need)
stainless steel,galvanized steel, PVC roller or nylon roller
Frame Material
Stainless Steel,Carton Steel,Aluminum Profile
Load-bearing Per Meter
30KG, 50KG, 70KG, and custom
Drive Type
non-power or driven by motor
Conveyor Application
The flexible conveyor is usually used for track loading unloading
