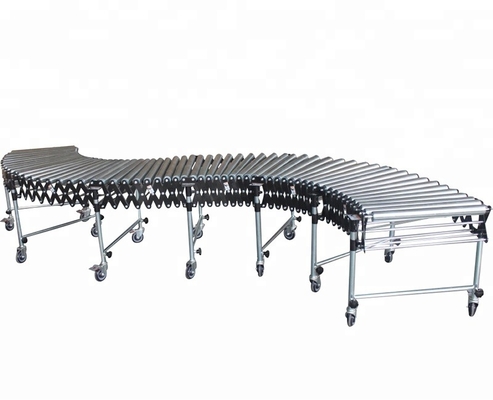

Flexible gravity roller conveyor is one of the most common conveyors applied in conveying flat-bottom items like cases,boxes and pallets,small ,soft or irregular items are supposed to put on trays or other flat containers.This kind of conveyor is characterized with large and efficient ditribution,convenient connection to other lines and easy maintenance.
1.Extendable, retractable roller conveyor can be used flexibility.
2.Can decrease wokers, reduce cost of company, but improve effiency of working.
3.Can reduce damage of goods during working.
| Length of first/last section(mm) | Length of middle section(mm) | Effective width(mm) | Adjustable height(mm) | Load capacity (kgs/section) | Rollers/section (pcs) | Dead weight (kgs/section) |
| 560~1250 | 460~1100 | 600 | 700~1000 | 40 | 9 | 42 |
1.Material of frame can choose carbon steel,stainless steel,aluminum,the material of roller can choose carbon steel, plastic roller ,stainless steel roller,roller with rubber,aluminum roller,PVC and ABS.
2.Standard width of roller conveyor is 600mm and diameter of roller is 50mm, other sizes also can be choosen by you.
3. Conveyor belt can be extended, retracted and bended. Expansion ratio is approximately 2.5:1; Conveying direction can be adjusted within 180 degrees.
4.The conveyor can be connected to other equipment via hooks in the end. It can be lengthened by connecting the two units via hooks
5. When the handrail component is raised, it can block the goods, and prevent the goods from falling off the conveyor.
6.Heavy-duty swivel castors with brakes and adjustable conveying height are available. conveyor can form a slope to convey goods if needed
